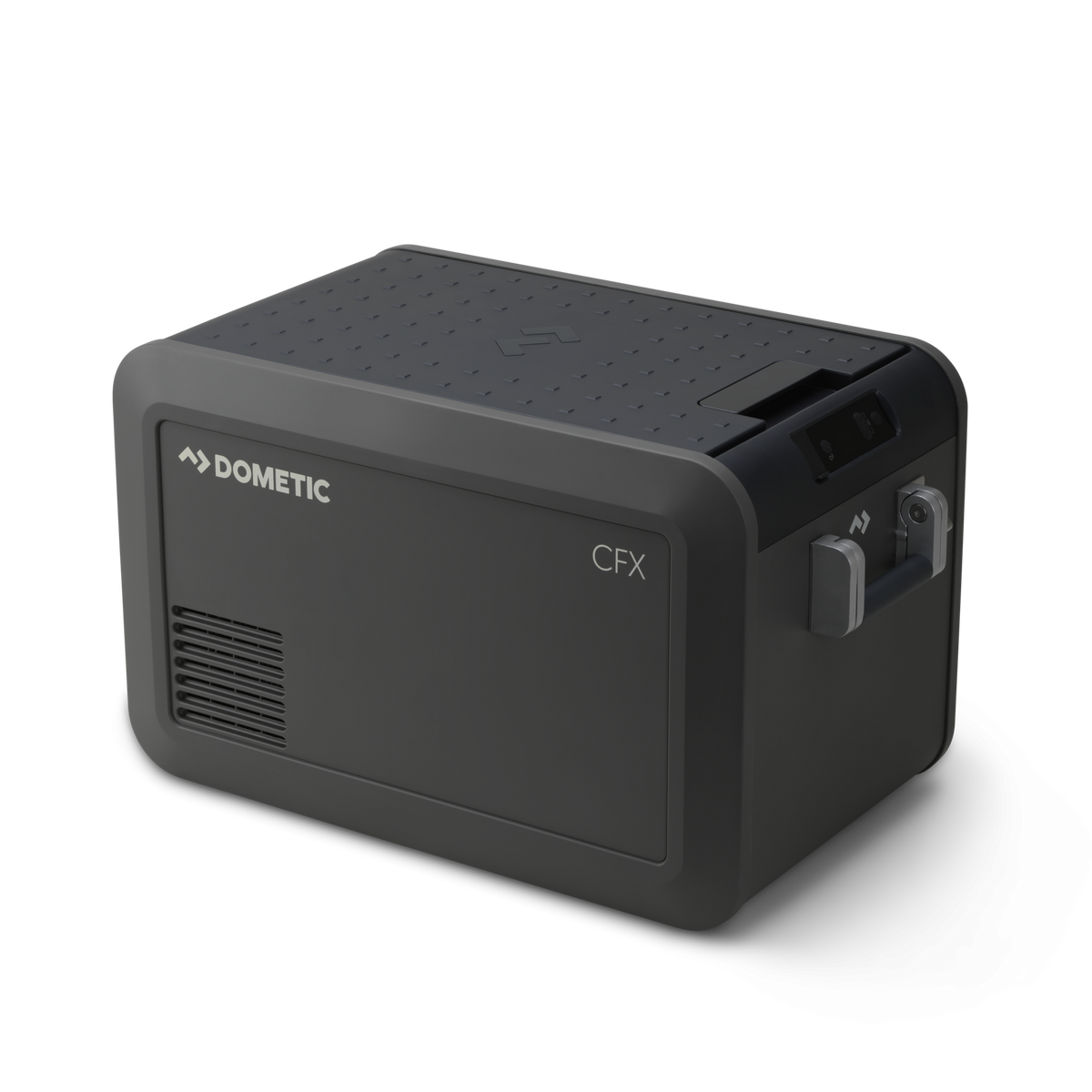

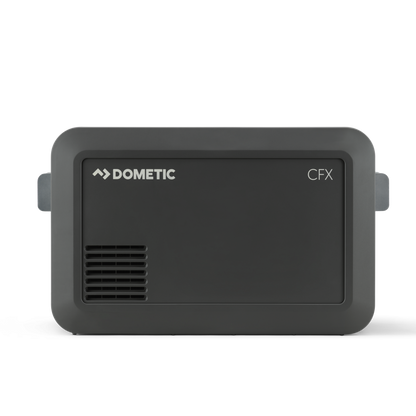

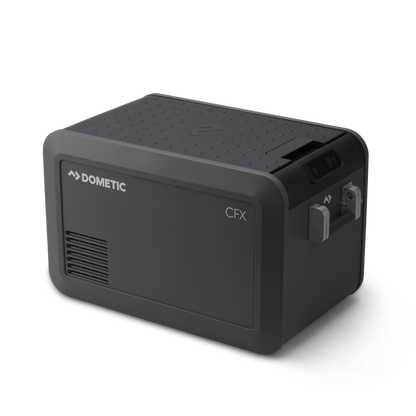

The CFX5 35L is a super-versatile size – holds up to 50 cans and is easy to carry – make it your ice-free electric cooler for camping trips and family outings. The highly efficient Vacuum Insulated Panels deliver outstanding insulation, the lid’s gasket seals tight, and the compressor takes you down to -7F degrees. Control it with our smartphone app and stay adventure ready.

✓> VIP – EXCEPTIONALLY EFFICIENT INSULATION

✓> POWERFUL COMPRESSOR

✓> HIGH RESOLUTION DISPLAY

✓> RELIABLE & STABLE INTERIOR

✓> PREMIUM DESIGN DETAILS

✓> DURABLE EXOFRAME DESIGN

Features

The 35L capacity holds up to 50 x 12 oz cans – a versatile size for up to four people’s weekend adventures and long solo trips.

Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.

Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.

Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.

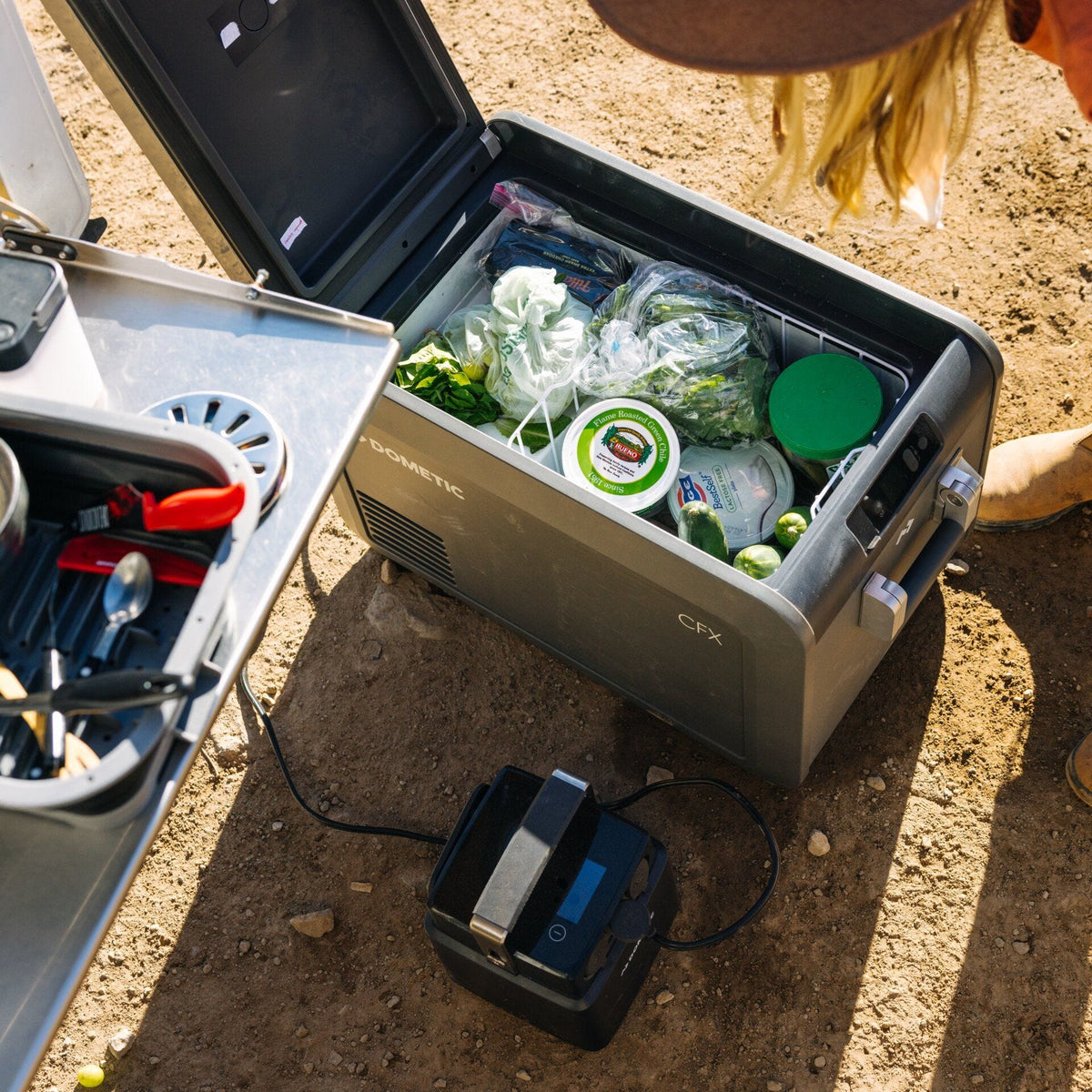

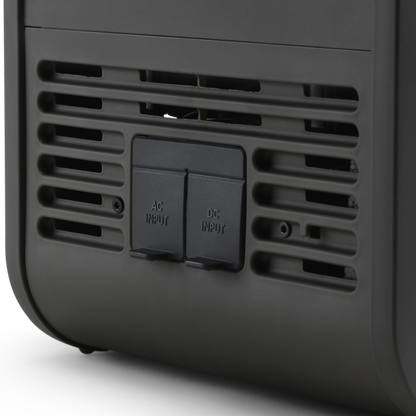

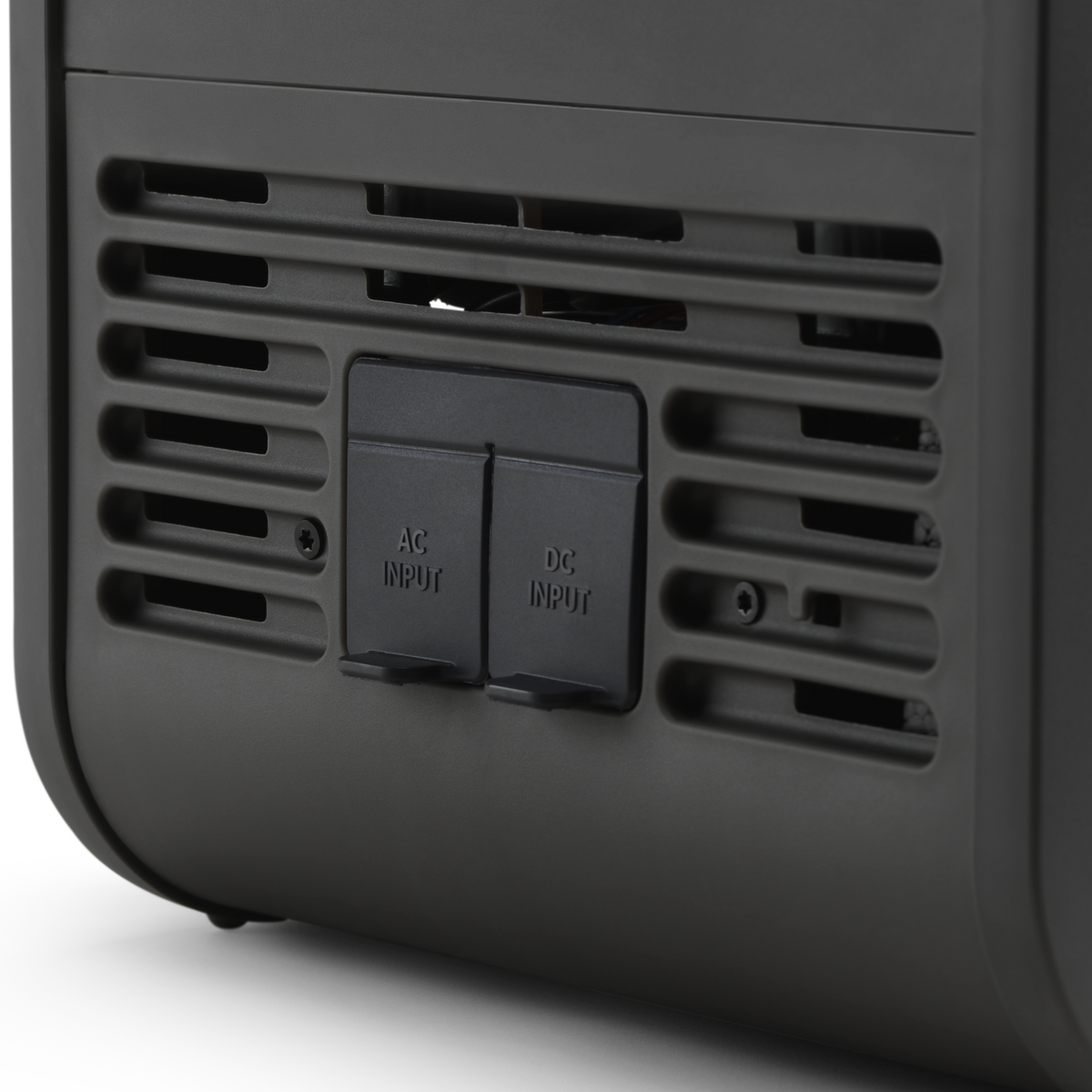

Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.

3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

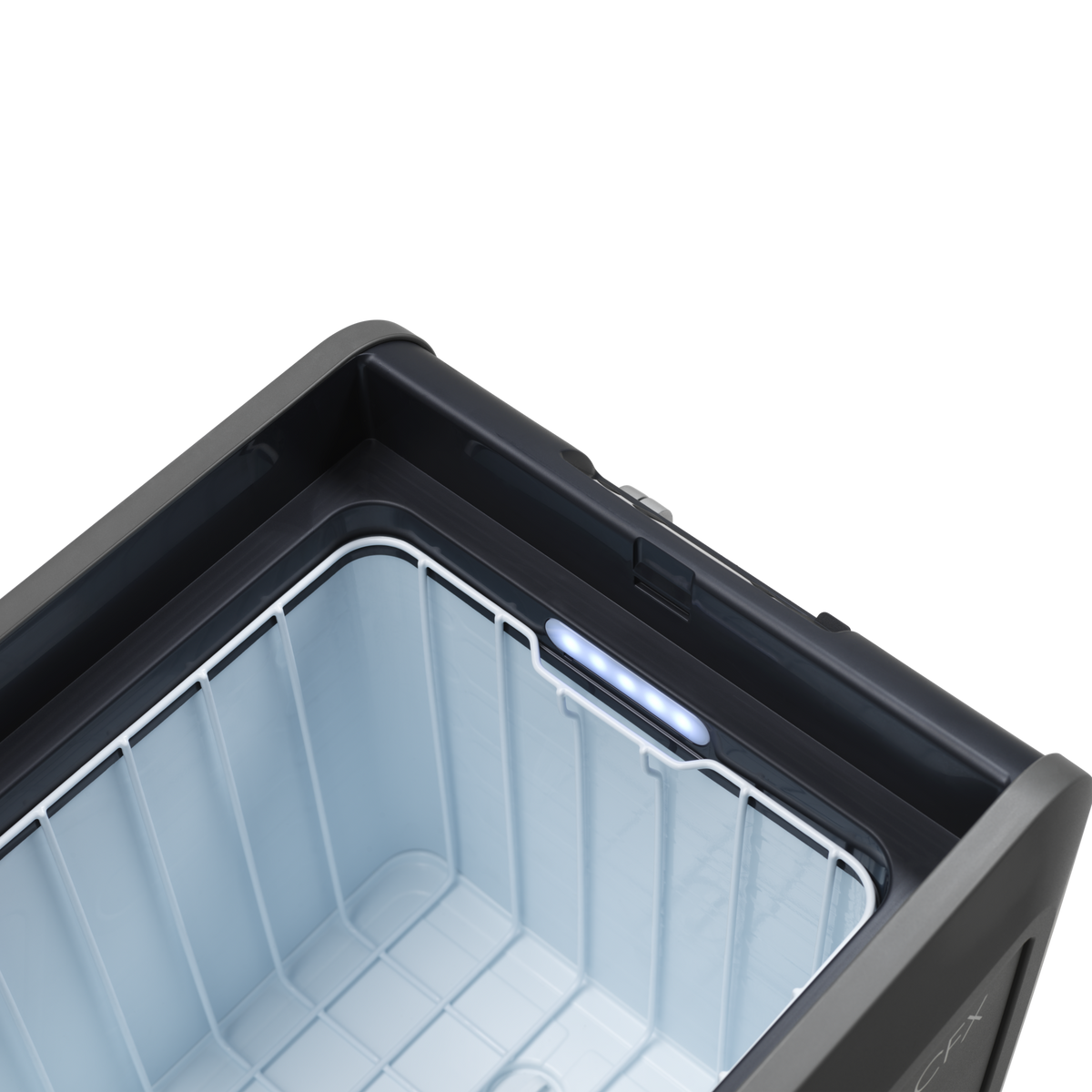

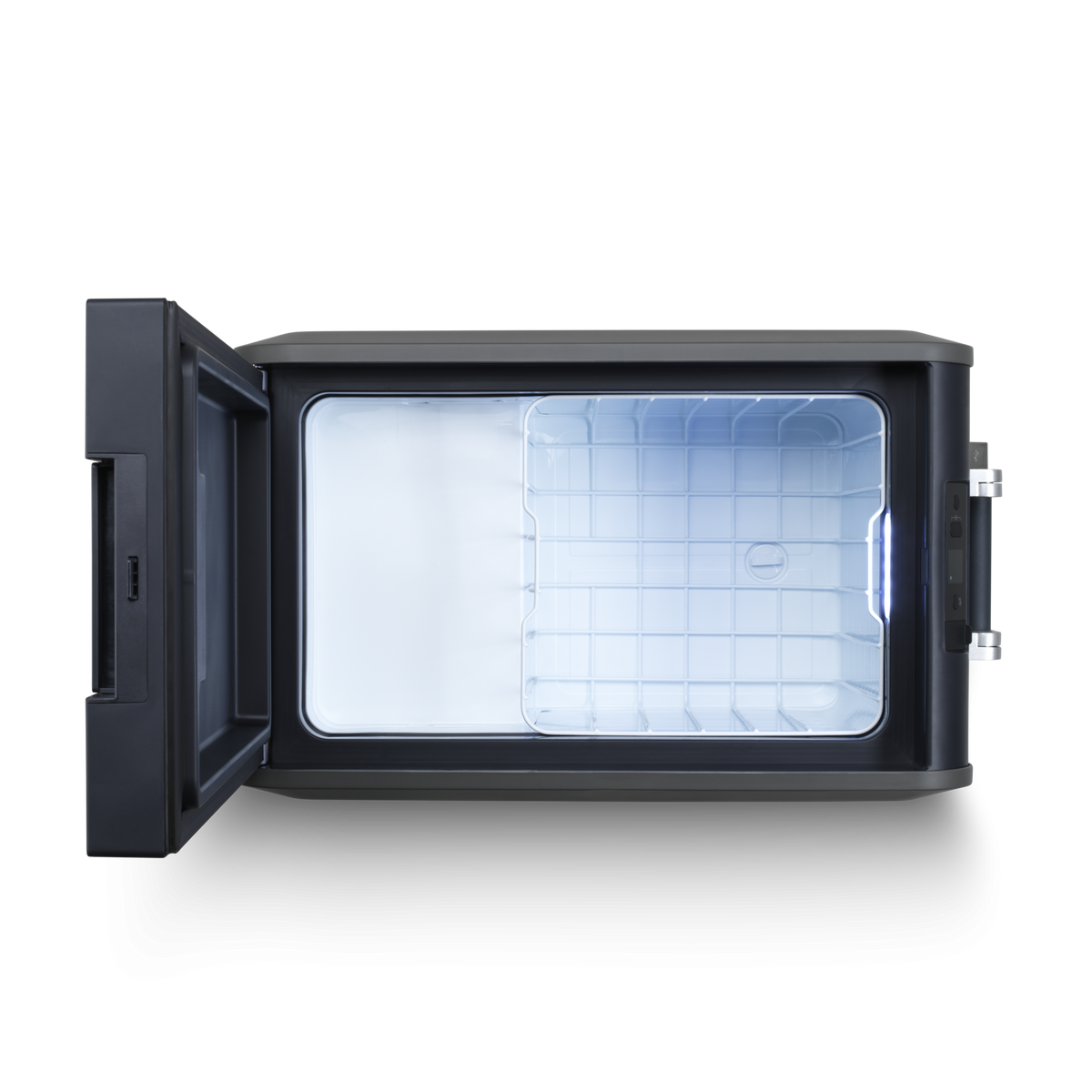

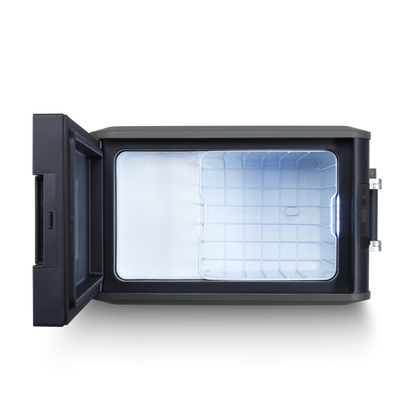

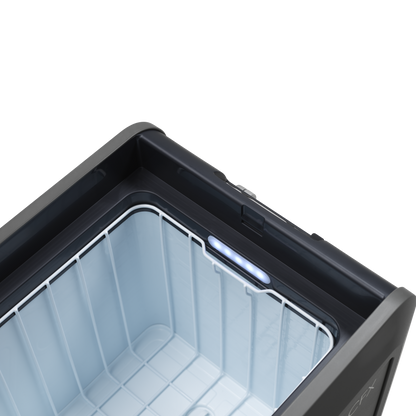

Internal details include a removable wire divider and an interior light.

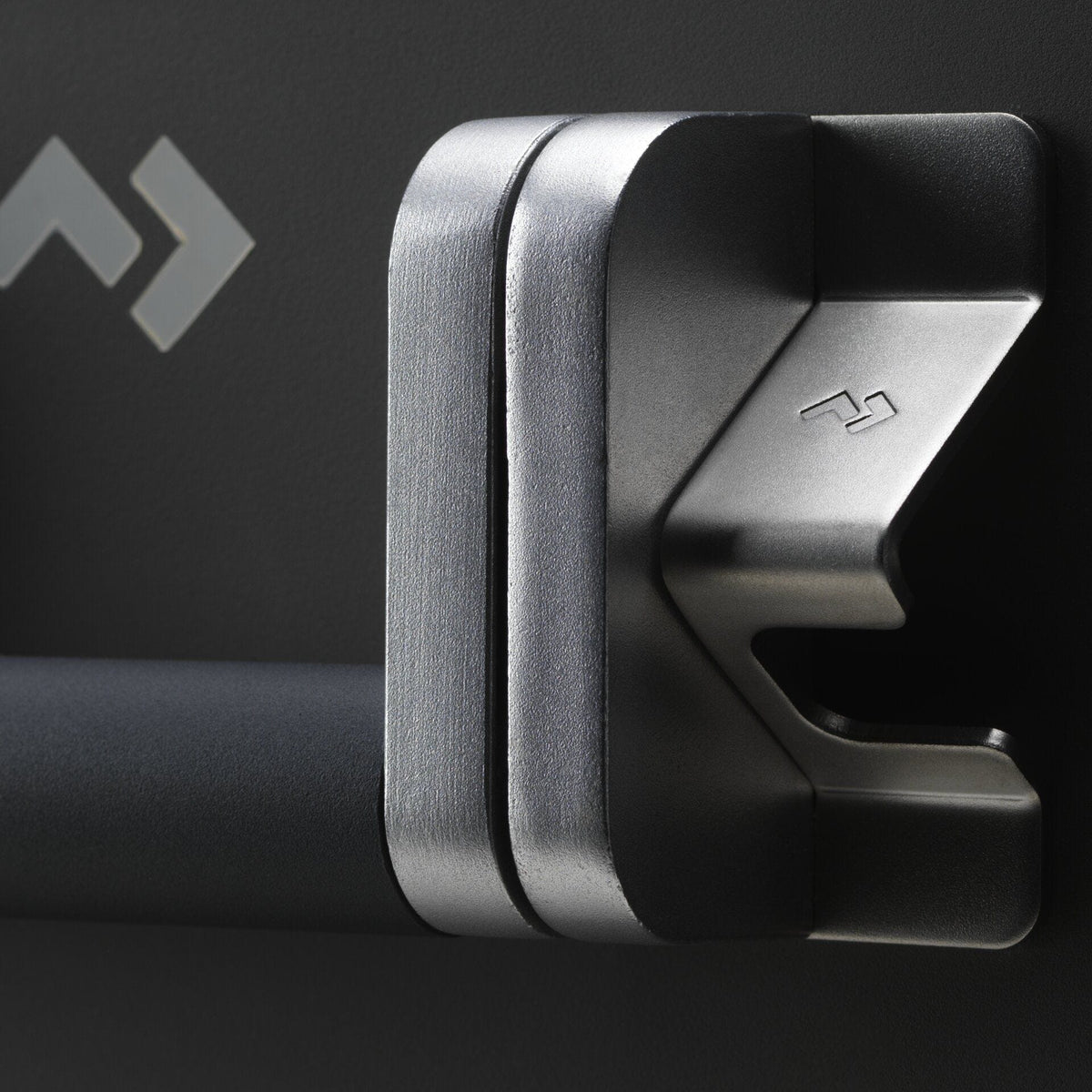

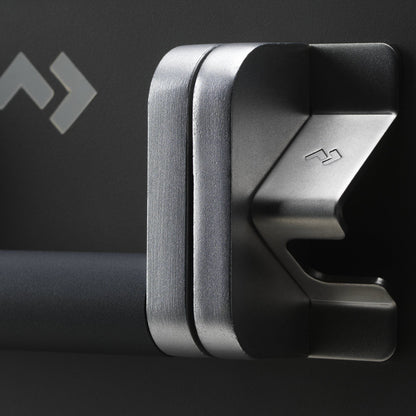

External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

General

Model

CFX535

Scope of delivery

1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener

Product Description

Advanced Materials and Design in an Ice-Free 35L Electric Cooler

Dimensions

Dimensions product depth, [in]

27.32

Dimensions product height, [in]

16.02

Dimensions product width, [in]

15.67

Net weight, [lbs]

36.52

Total volume (IEC 62552-3), [l]

36

Amount of cans (12oz/375ml)

121

Electrical

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Rated input current (AC), [A]

0.90A at 100V, 0.38A at 240V

Rated input current (DC), [A]

3.4A at 24V, 7.6A at 12V

Rated input power (AC), [W]

47

Input frequency, [Hz]

50/60

Battery type

Not Applicable (NA)

Priority circuit (Integrated)

Yes

Performance

Hermetically Sealed

Yes

Refrigerant, type

R1234yf

GWP

0.5

Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]

1.11

Climate class (EN 62552)

N/T

Operating temperature min, [°F]

61

Operating temperature max, [°F]

109

Insulation Type

PU (Polyurethane)

Properties

USB Port

Yes

Connectivity Type

Bluetooth

Basket

Yes

Threaded inserts in base for mounting

M6

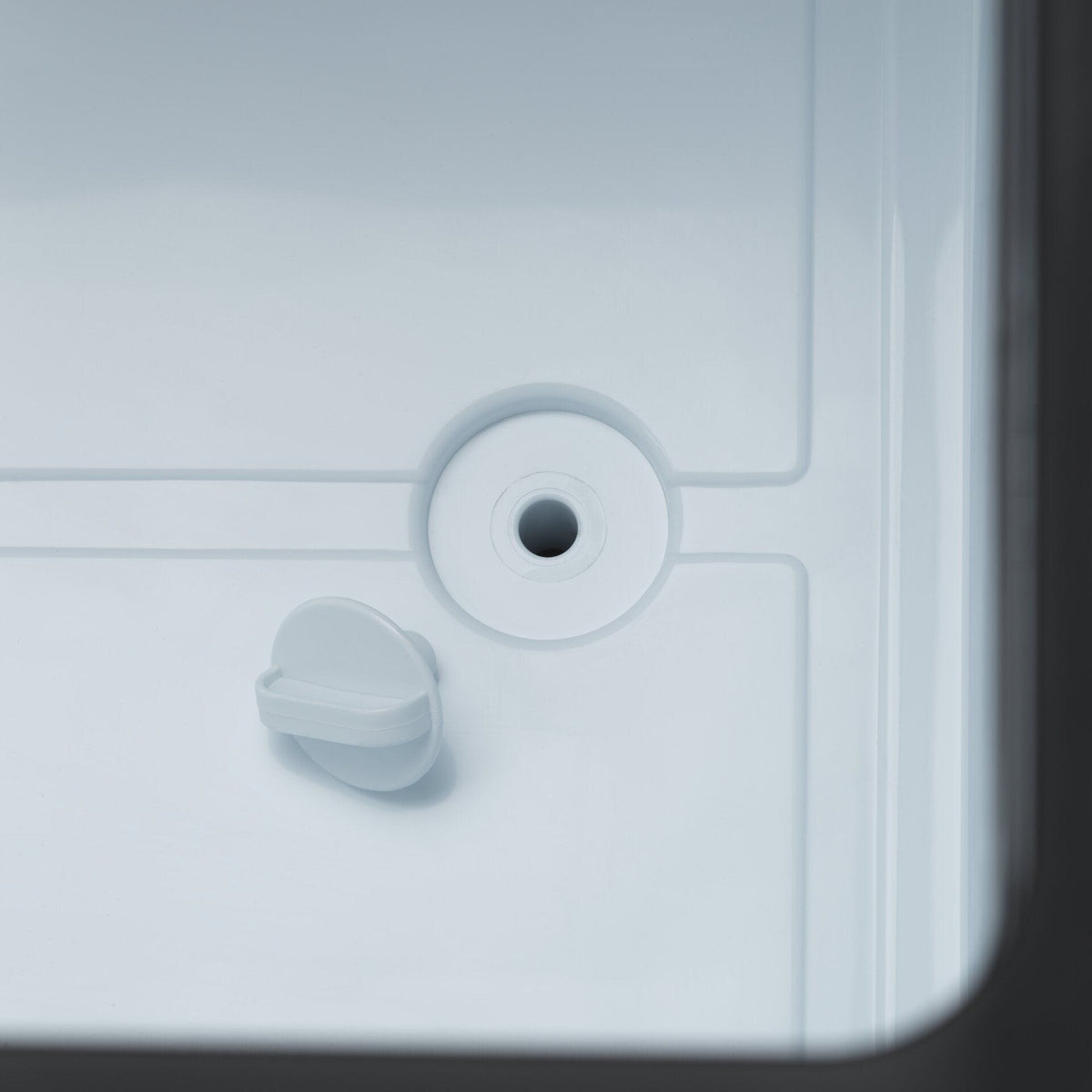

Drain plug

Yes

Anti-condensation coil

Yes

Single or Dual Zone

Single

Thermostat control

Electronic Thermostat

Interior light

Yes, LED

Logistics

Dimensions parcel depth, [in]

28.74

Dimensions parcel height, [in]

16.93

Dimensions parcel width, [in]

17.91

Parcel weight, [lbs]

41.80

Get the Highlights

VIP – EXCEPTIONALLY EFFICIENT INSULATION

VIPs – Vacuum Insulated Panels – superb energy efficiency, VIPs minimize thermal transfer through superior sealing and air removal techniques.

POWERFUL COMPRESSOR

Variable Motor Speed Optimization Technology 3.5 automatically adjusts speed for optimal performance.

HIGH RESOLUTION DISPLAY

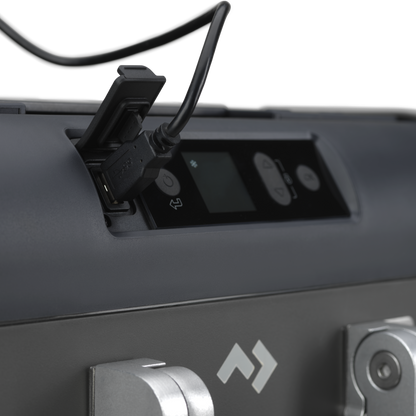

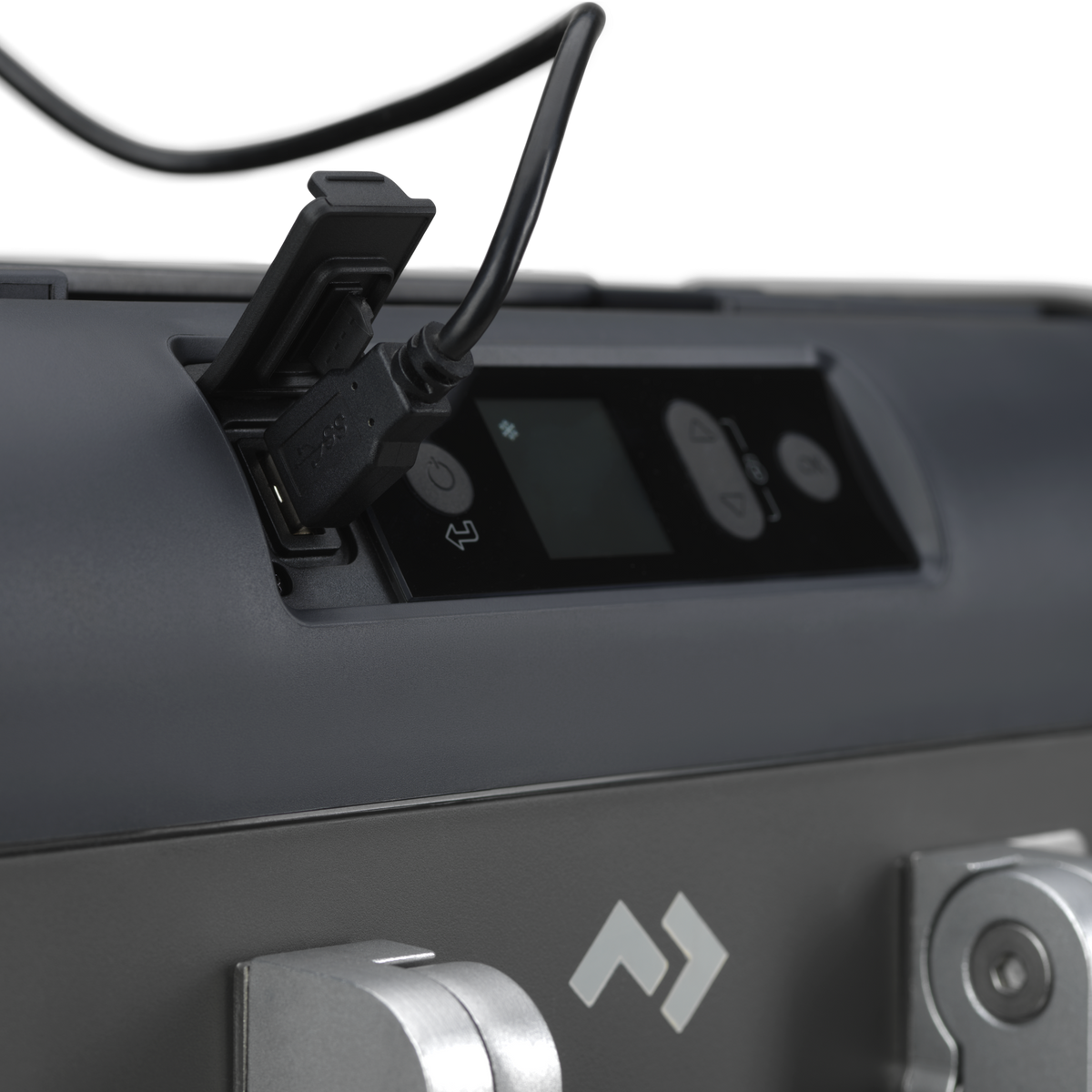

Easy-to-read, weatherproof, high-resolution TFT color operating display, with 18W QC 3.0 USB port, and soft-touch buttons.

RELIABLE & STABLE INTERIOR

Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.

PREMIUM DESIGN DETAILS

Removable wire divider, interior light, self-folding aluminium alloy handles, an integrated bottle opener, TPE gaskets for a tight lid seal, and removable lid with textured non-slip logo.

DURABLE EXOFRAME DESIGN

Reinforced corners and edges, and folding handles that help you take it anywhere.
