This is the Big One. Dual zone cooling and a capacity that lets you get nomadic for a while – or go all out with campsite dinners. Vacuum Insulated Panels deliver outstanding insulation, and two cooling compartments keep everything at the right temp – ice cream won’t melt, cheese won’t freeze. You can control it with our smartphone app, a carbon steel frame protects, and – cheers – a bottle opener’s built in.

TWO COOLING ZONES

VIP – VACUUM INSULATED PANELS

POWERFUL VMSO 3.5 COMPRESSOR

WEATHERPROOF HIGH RESOLUTION DISPLAY

RELIABLE & STABLE INTERIOR

PREMIUM DESIGN DETAILS

Features

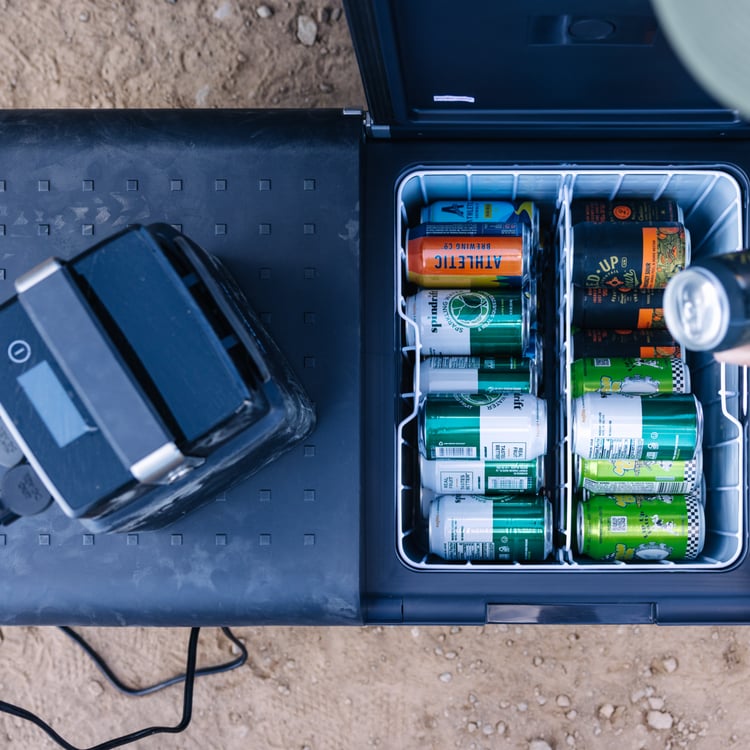

The 96L DZ capacity holds up to 133 x 12 oz cans – a large size for big groups            and extended nomadic travel.

Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W              light bulb.

Track energy consumption and monitor temperature with the cooler’s Bluetooth          smartphone app; be alerted when lid is left over, monitor history, and connect            multiple devices at once.

Optimized ratio of exterior to interior proportions provides maximum compressor        efficiency, while the extended evaporator on inner walls ensures an even                    distribution of cold air.

Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.

3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

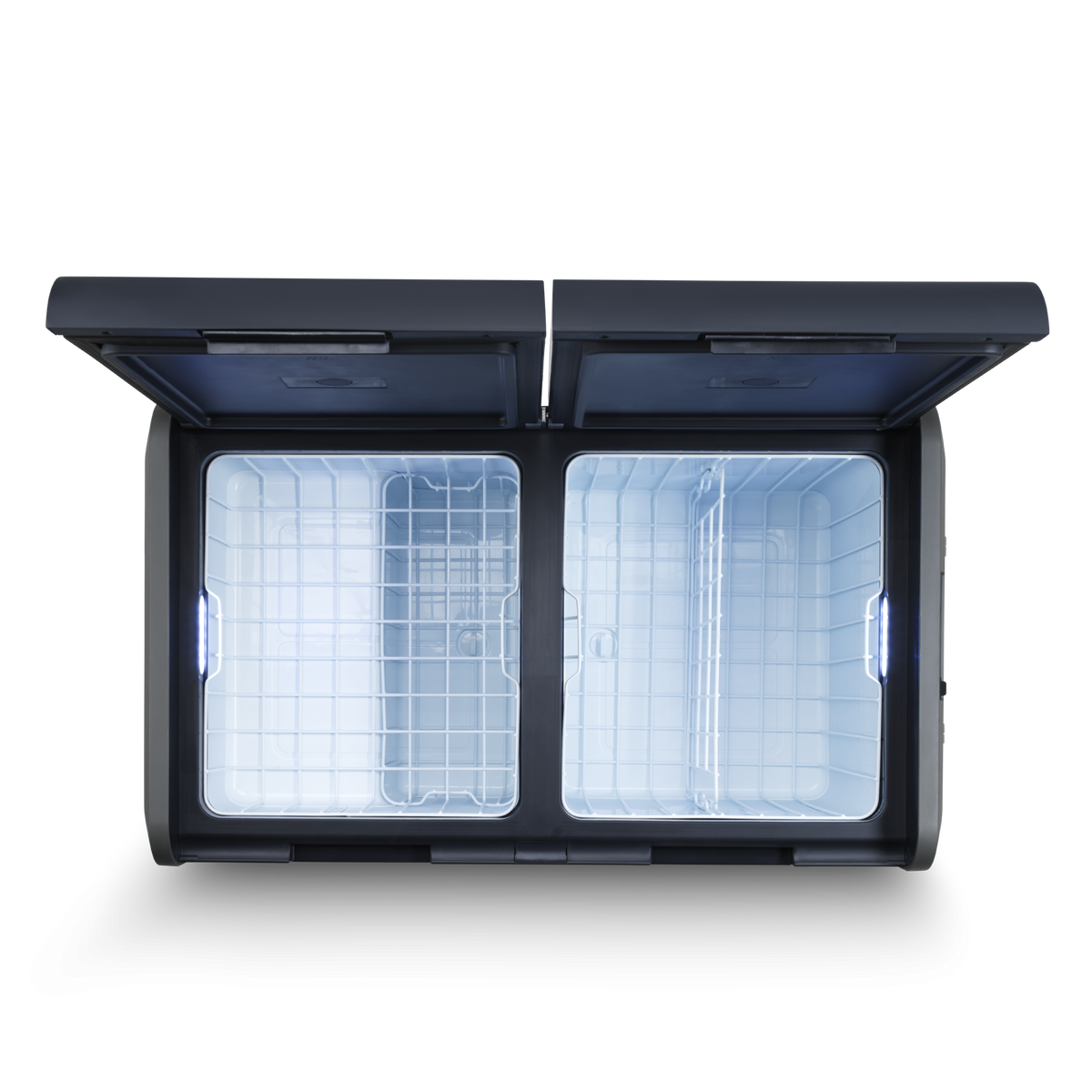

Two cooling zones allow you to bring refrigerated and frozen foods all at once.

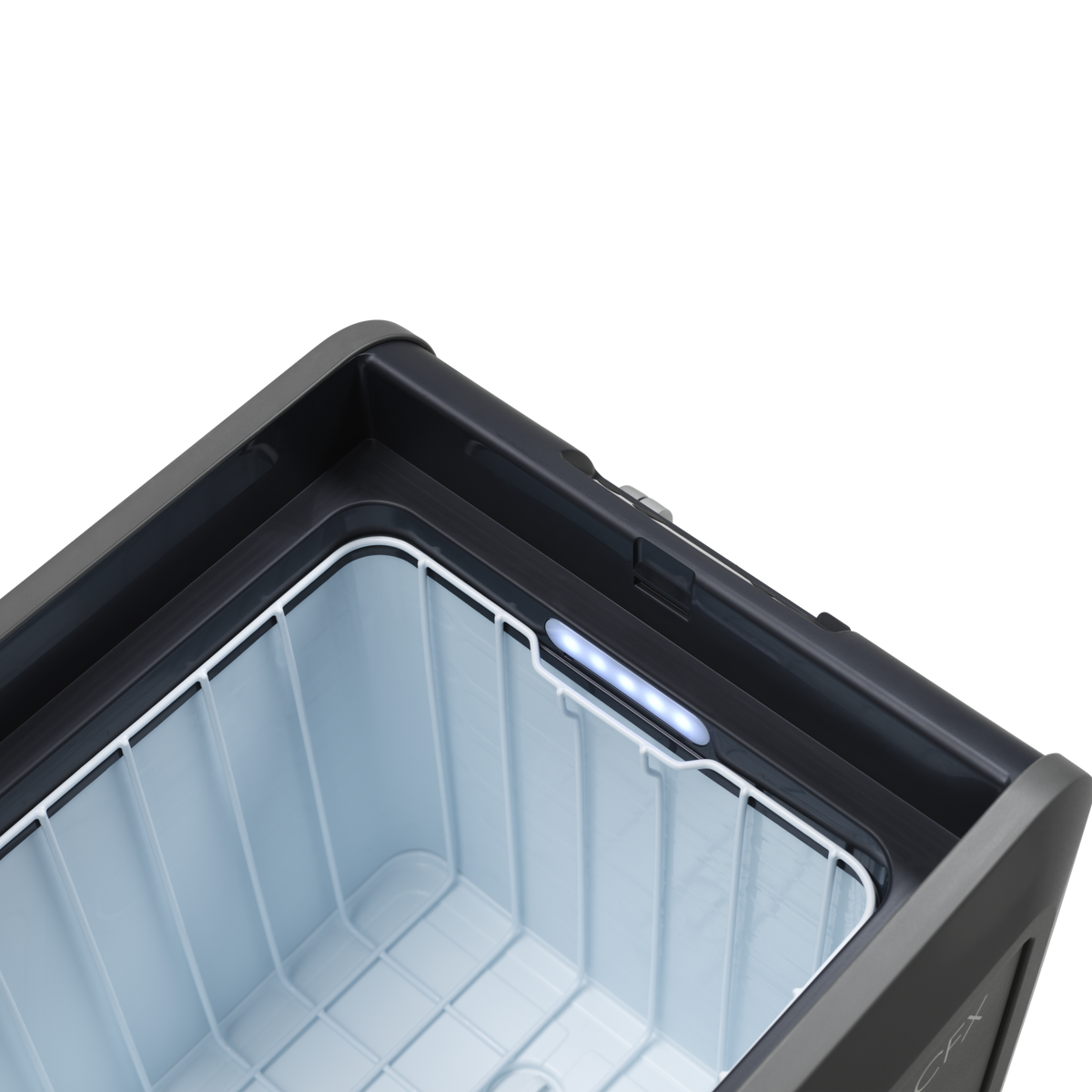

Internal details include a removable wire divider and an interior light.

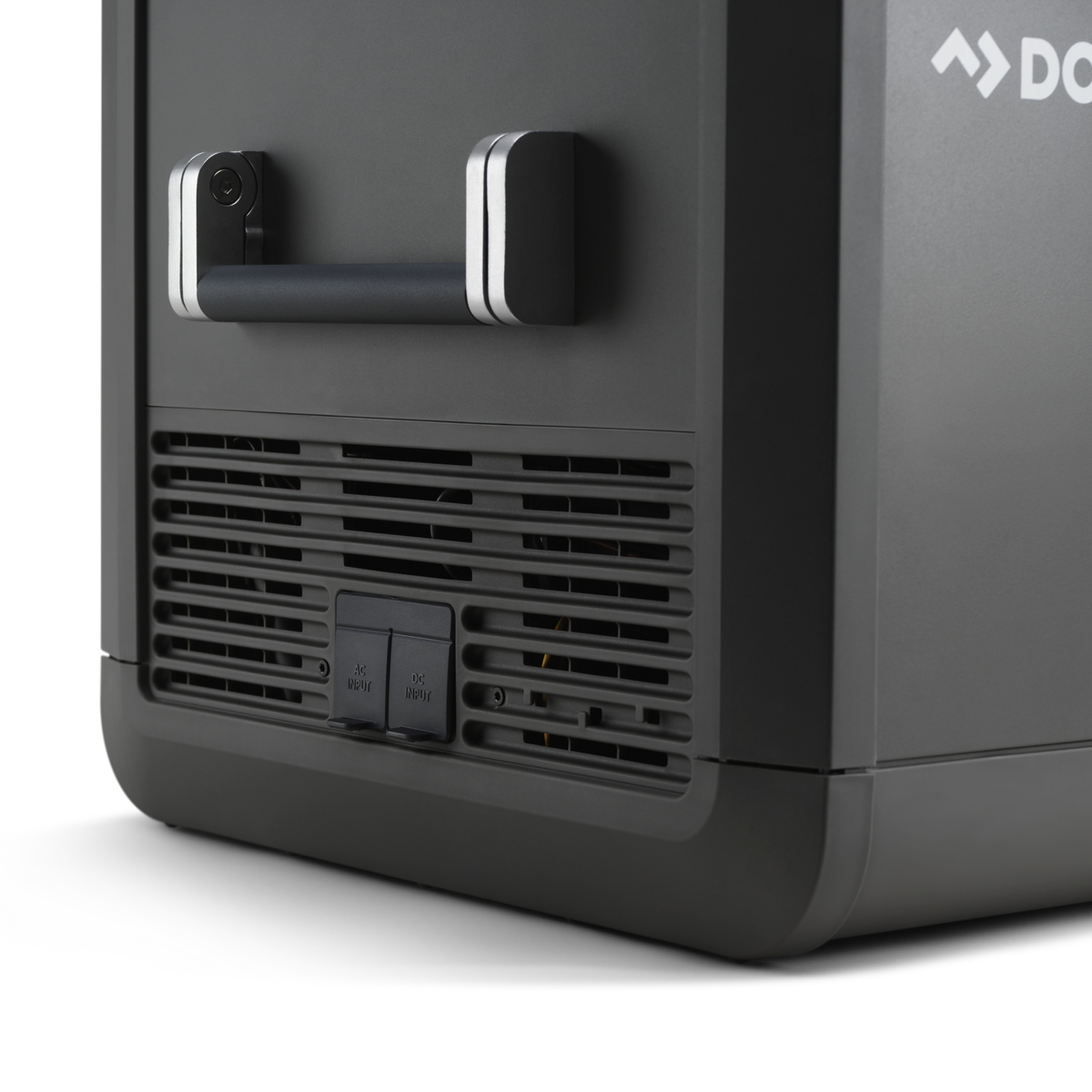

External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

General

Model

CFX595DZ

Scope of delivery

1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener

Product Description

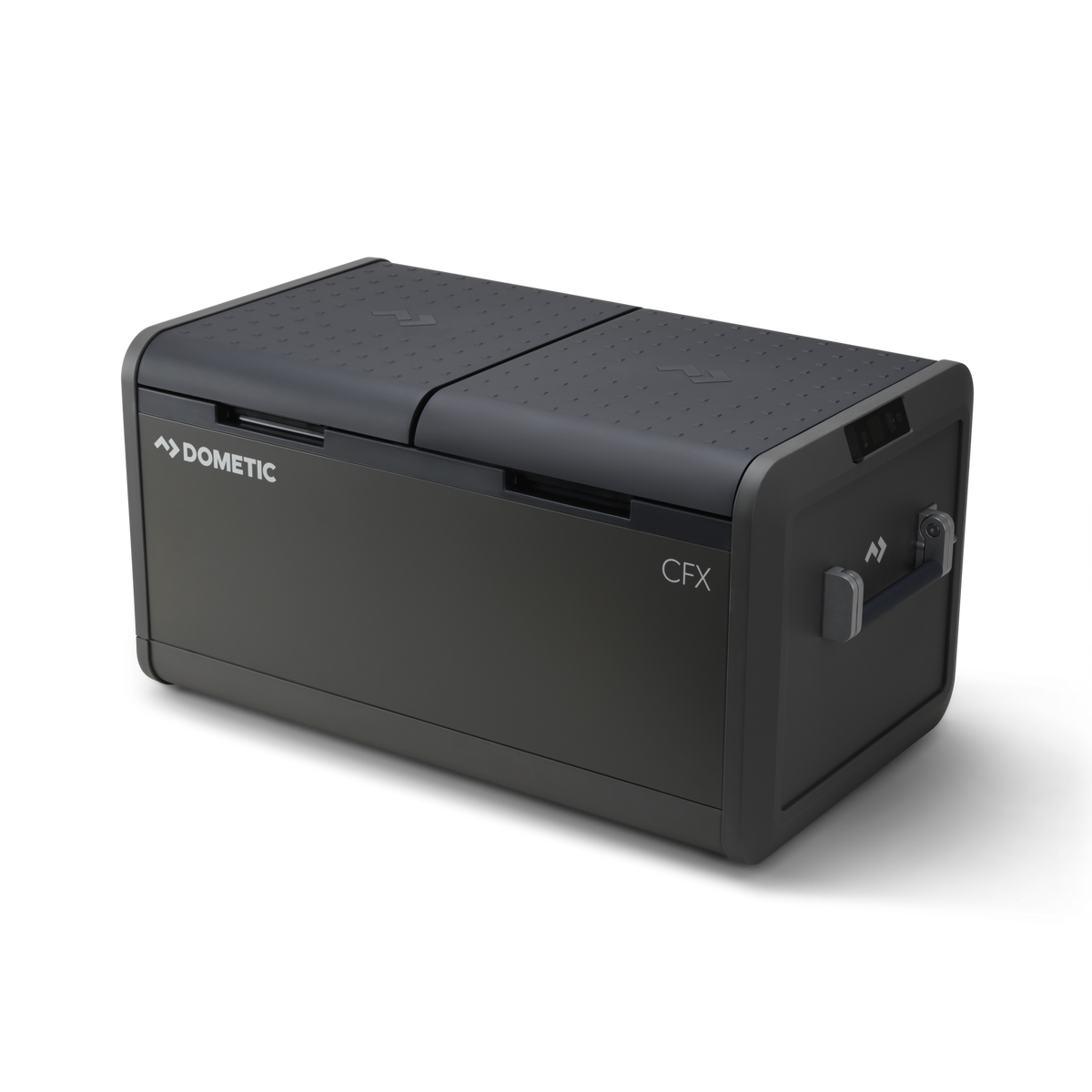

Advanced Materials and Design in a 95L DZ Dual-Zone Electric Cooler

Dimensions

Dimensions product depth, [in]

37.87

Dimensions product height, [in]

18.58

Dimensions product width, [in]

20.87

Net weight, [lbs]

63.50

Total volume (IEC 62552-3), [l]

94

Amount of cans (12oz/375ml)

121

Electrical

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Rated input current (AC), [A]

1.15A at 100V, 0.48A at 240V

Rated input current (DC), [A]

4.5A at 24V, 9.8A at 12V

Rated input power (AC), [W]

65

Input frequency, [Hz]

50/60

Battery type

Not Applicable (NA)

Priority circuit (Integrated)

Yes

Performance

Hermetically Sealed

Yes

Refrigerant, type

R1234yf

GWP

0.5

Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]

1.53

Energy Consumption 12VDC (4 °C large zone, -15 °C small zone, 32 °C ambient), [Ah/h]

3.26

Climate class (EN 62552)

N/T

Operating temperature min, [°F]

61

Operating temperature max, [°F]

109

Insulation Type

PU (Polyurethane)

Properties

USB Port

Yes

Connectivity Type

Bluetooth

Basket

Yes

Threaded inserts in base for mounting

M6

Drain plug

Yes

Anti-condensation coil

Yes

Single or Dual Zone

Dual

Thermostat control

Electronic Thermostat

Interior light

Yes, LED

Get the Highlights

TWO COOLING ZONES

Dual zones let you set separate temps in separate compartments – one side cool, one side frozen.

VIP – VACUUM INSULATED PANELS

Exceptionally efficient insulation. Vacuum Insulated Panels have superb energy efficiency, VIPs minimize thermal transfer through superior sealing and air removal techniques.

POWERFUL VMSO 3.5 COMPRESSOR

Variable Motor Speed Optimization Technology 3.5 automatically adjusts speed for optimal performance.

WEATHERPROOF HIGH RESOLUTION DISPLAY

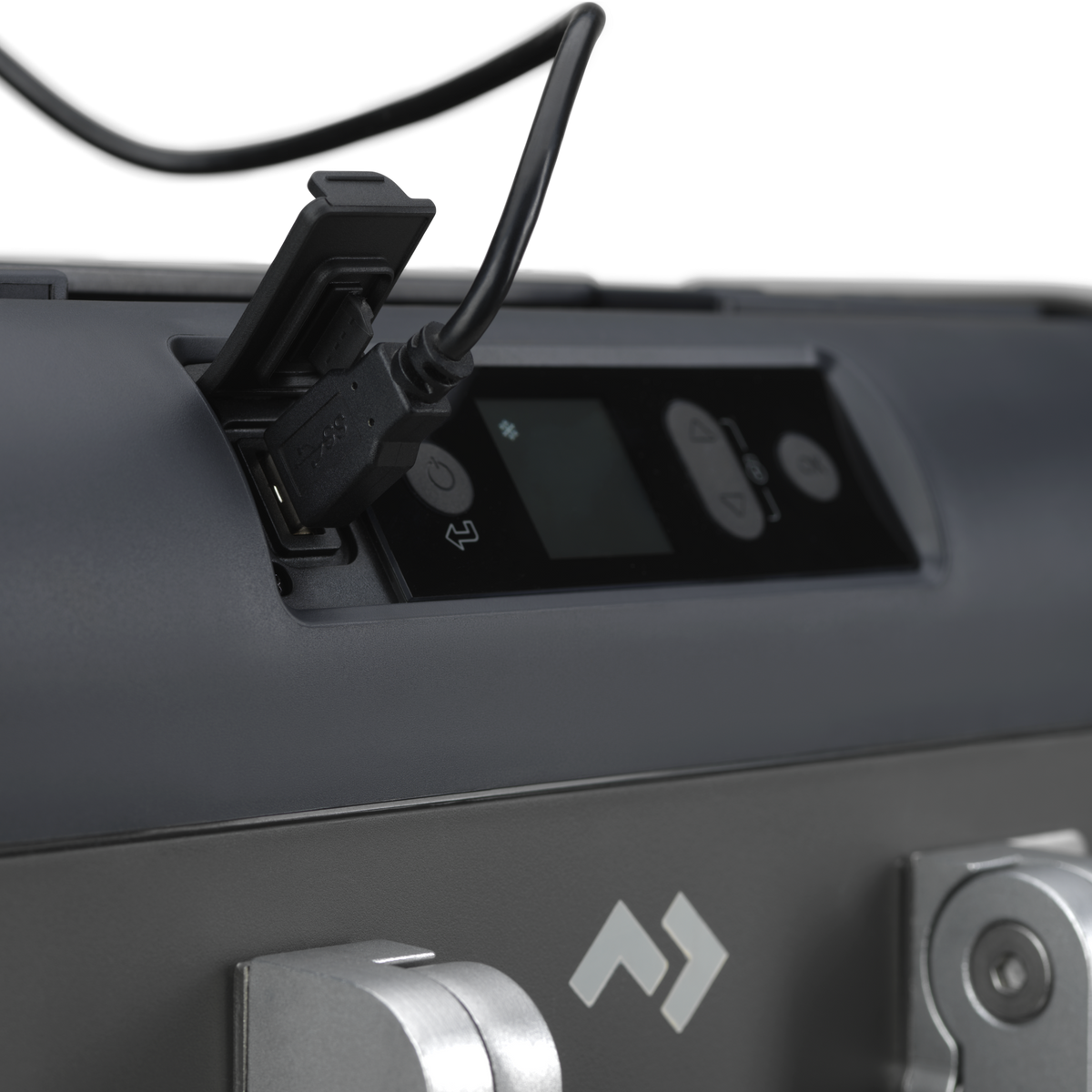

Easy-to-read, weatherproof, high-resolution TFT color operating display, with 18W QC 3.0 USB port, and soft-touch buttons.

RELIABLE & STABLE INTERIOR

Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.

PREMIUM DESIGN DETAILS

Removable wire divider, interior light, self-folding aluminium alloy handles, an integrated bottle opener, TPE gaskets for a tight lid seal, and removable lid with textured non-slip logo.
